COOLDIA

Cutter size D Part No. Max. drilling depth l 5.0mm DG050 15mm 6.0mm DG060 6.5mm DG065 7.0mm DG070 8.0mm DG080 10.0mm DG100 12.0mm DG120 13.5mm DG135 15.0mm DG150 20.0mm DG200 25.0mm DG250 30.0mm DG300 32.0mm DG320 35.0mm DG350 38.0mm DG380

*	Please use Cool Gel. Water is also usable.

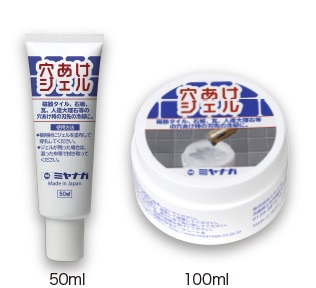

Cool Gel

Volume Part No. 50ml GEL50 100ml GEL100

For cutters in dia. 20mm and larger, apply gel to around a quarter of the cutting edge. Applying gel to the entire cutting edge surface, it gets splattered around.

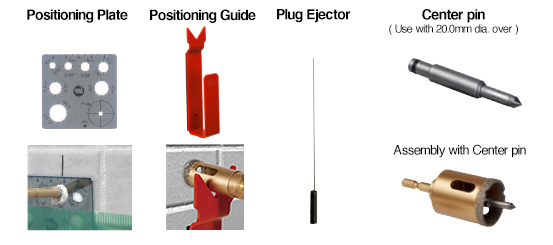

Item Part No. Positioning Plate PP Positioning Guide PG Plug Ejector DMPE1 Center pin for 20.0mm DGCP
