Vinyl chloride pipe core bits Size table


The actual sizes are in metric, and imperial sizes are approximate.
Cutter size D Complete sets Cutters
  mm inch Part No.
(Straight shank sets)
Part No.
(SDS shank sets)
Part No.
120mm 4-3/4" PCEW120 PCEW120R PCEW120C
130mm 5-1/8" PCEW130 PCEW130R PCEW130C
  140mm 5-1/2" PCEW140 * Note 1 PCEW140C
150mm 5-7/8" PCEW150 PCEW150C
  168mm 6-39/64" PCEW168 PCEW168C
170mm 6-11/16" PCEW170 PCEW170R PCEW170C
  180mm 7" PCEW180 * Note 1 PCEW180C
  185mm 7-9/32" PCEW185 PCEW185C
  200mm 7-7/8" PCEW200 PCEW200C
220mm 8-11/16" PCEW220 PCEW220C
* Click here for the size table of the Poly-Clic shanks and Dust prevention cap.
* Note1: The SDS shank set is not available. Order a cutter, SDS shank, and center drill separately.

Kit

Item Part No.
(Straight shank sets)
Part No.
(SDS shank sets)
Combination
Vinyl chloride pipe core bit kit PCEWKIT PCEWKITR

Cutters of o 120mm (4-3/4") and 170mm (6-11/16"), L shank, center drill


Shanks
Click here for the size table of the Poly-Clic shanks.

Center drill

Item Part No. Applications
Center drill PCHWCD175 Cutters of o120mm to 220mm (o4-3/4" to 8-11/16")
cation
* Carbide tips may get caught with PVC ribbed pipes with a corrugated structure, which in some cases leads to cracks or chipping of work materials. Therefore, use the Hyperdia core bits for cutting such PVC pipes instead of the Vinyl chloride pipe core bits.

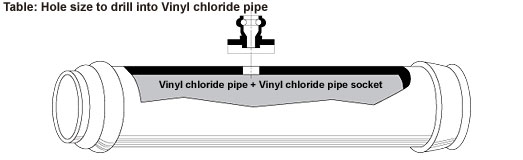

Hole size to drill into Vinyl chloride pipe

Nominal diameter of vinyl-chloride-pipe socket Cutter size of Vinyl chloride pipe core bits
100mm (3-7/8") 120mm (4-3/4")
150mm (5-7/8") 170mm (6-11/16")
200mm (7-7/8") 220mm (8-11/16")
