Drilling holes into concrete, porcelain tile, ceramic tile, granite, and marble only with drilling in rotary mode.
*Cracks do not get clogged with dust.
*Delamination on the back side at the time of penetration is minimized.

Recommended rotation speed and power consumption

Bit size D (mm)	Rotation speed (rpm)	Power consumption (W)
4.0 to 10.5	15000 to 3000	250W or larger
11.0 to 24.0	7000 to 1500	500W or larger

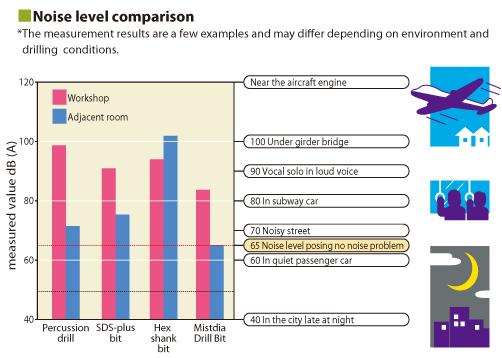

Low noise achieved through rotary mode drilling, making it possible to work anytime, anywhere.

Easy drilling in materials such as porcelain tile, ceramic tile, granite, and marble without burning or chipping of cutting edge.

The amount of water flow is finely adjustable using the water control valve attached onto the shank.

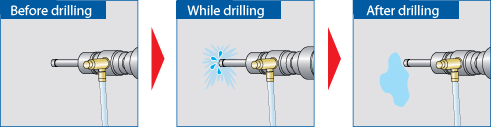

By automatic lock mechanism, water is fed to the cutting teeth only while drilling.

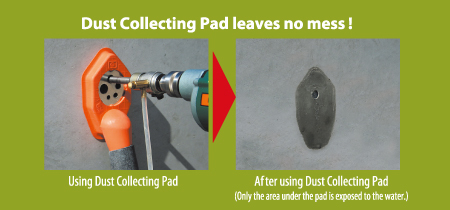

Wetting in workplaces is reduced.

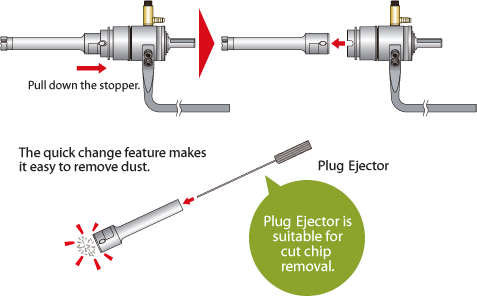

The body can be detached with a single action and removal of dust accumulated in it is easy.

All you need to do is to replace the cutter as long as you use these tools of the same size. Therefore, the Mistdia Drill Bit is available at only two to three times the price of a conventional drill bit for concrete or ceramic tiles.
