IT carbide drills
|
The actual sizes are in metric, and imperial sizes are approximate.
The bit size (diameter) is based on MIYANAGA standard.
|
| Bit size D |
Part No. |
Overall length L |
Max. drilling depth l |
| |
mm |
inch |
 |
3.5mm |
9/64" |
ITT035 |
120mm (4-3/4") |
50mm (2") |
| |
4.0mm |
5/32" |
ITT040 |
| |
4.3mm |
|
ITT043 |
| |
4.5mm |
11/64" |
ITT045 |
| |
5.0mm |
3/16" |
ITT050 |
| |
6.0mm |
15/64" |
ITT060 |
130mm (5-1/8") |
65mm (2-9/16") |
| |
6.5mm |
1/4" |
ITT065 |
| |
8.0mm |
5/16" |
ITT080 |
140mm (5-1/2") |
75mm (2-7/8") |
|
8.5mm |
21/64" |
ITT085 |
| |
9.0mm |
23/64" |
ITT090 |
150mm (5-7/8") |
90mm (3-1/2") |
| |
10.5mm |
13/32" |
ITT105 |
|
IT drill cutters
|
The actual sizes are in metric, and imperial sizes are approximate.
The bit size (diameter) is based on MIYANAGA standard.
|
| Bit size D |
Part No. |
| |
mm |
inch |
| |
8.5mm |
21/64" |
IT085C |
| |
9.0mm |
23/64" |
IT090C |
| |
10.0mm |
3/8" |
IT100C |
| |
10.5mm |
13/32" |
IT105C |
| |
11.0mm |
27/64" |
IT110C |
 |
12.0mm |
15/32" |
IT120C |
| |
12.5mm |
1/2" |
IT125C |
| |
14.5mm |
9/16" |
IT145C |
| |
16.0mm |
5/8" |
IT160C |
| |
16.5mm |
41/64" |
IT165C |
| |
18.0mm |
45/64" |
IT180C |
|
| * |
Cutters for the IT diamond drill straight body are compatible with the IT drill cutters. |
IT drill cutters
|
The actual sizes are in metric, and imperial sizes are approximate.
The bit size (diameter) is based on MIYANAGA standard.
|
| Bit size D |
Part No. |
| mm |
inch |
| 19.0mm |
3/4" |
IT190C |
| 20.0mm |
25/32" |
IT200C |
| 22.0mm |
7/8" |
IT220C |
| 23.0mm |
29/32" |
IT230C |
| 24.0mm |
15/16" |
IT240C |
|
Shank assembly
| Item |
Part No. |
| IT (+) shank No.2 |
ITPSK2 |
|
| * Note: |
To use a cutter with a diameter of 19mm (3/4") and larger, remove the IT drill chuck and instead attach the IT diamond drill straight body. |
IT plug ejector
| Item |
Part No. |
Overall length |
| IT plug ejector |
ITPE110 |
110L |
|
| * |
Can be used with a cutter with a diameter of 12mm (15/32") or larger. |
IT diamond drill straight bodies
| Bit size D |
Part No. |
Overall length L |
Max. drilling depth l |
| |
mm |
inch |
| |
8.5mm to 10mm |
21/64" to 3/8" |
IT085SB |
110mm (4-1/4") |
60mm (2-3/8") |
| |
10.5mm to 12mm |
13/32" to 15/32" |
IT105SB |
|
12.5mm |
1/2" |
IT125SB |
150mm (5-7/8") |
100mm (3-7/8") |
| |
14.5mm |
9/16" |
IT145SB |
| |
16mm |
5/8" |
IT160SB |
| |
16.5mm |
41/64" |
IT165SB |
| |
18mm |
45/64" |
IT180SB |
|
IT diamond drill bodies
| Bit size D |
Part No. |
Overall length L |
Max. drilling depth l |
| mm |
inch |
| 19.0mm |
3/4" |
IT190B |
153mm (6-25/64") |
130mm (5-1/8") |
| 20.0mm |
25/32" |
IT200B |
| 22.0mm |
7/8" |
IT220B |
223mm (8-25/32") |
200mm (7-7/8") |
| 23.0mm |
29/32" |
IT230B |
| 24.0mm |
15/16" |
IT240B |
|

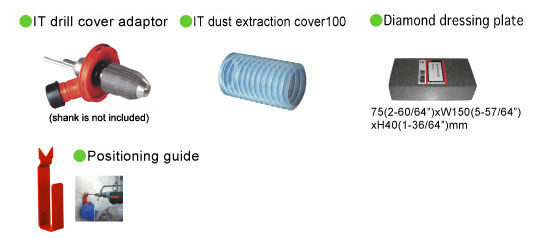

Optional accessories
| Item |
Part No. |
| IT drill cover adaptor |
ITBCADP |
| Plastic hood 100 |
PCSJC100 |
| IT drill chuck |
ITDC |
| Diamond dressing plate |
DDP |
| Positioning Guide |
PG |
|
