|  | Cutter size: | o22mm to 220mm (o7/8" to 8-11/16") | |

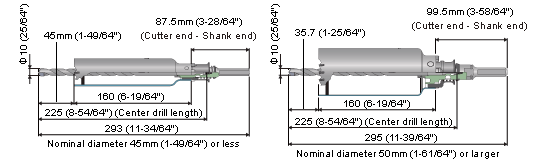

|  | Max. drilling depth: | Standard size: 130mm (5-1/8") (Cutter length: 160mm (6-5/16")) o22mm to 220mm (o7/8" to 8-11/16") | |
| Long size: 170mm (6-11/16") (Cutter length: 200mm (7-7/8")) o22mm to 45mm (o7/8" to 1-3/4") | |||
|  | Shank size: | Click here for the size table of the Poly-Clic shanks. | |
|  | Applicable electric drill: Percussion drill | ||
