AQUASHOT-TITLEBAR

Smoothly drilling into porcelain tile,ceramic tile, granite, and marble with cordless impact drivers.

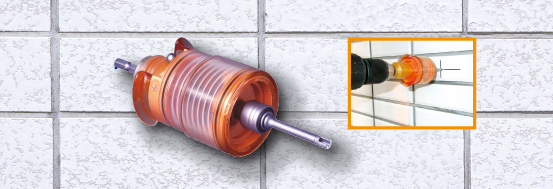

AQUASHOT

CHARACTERISTCS

  • Easily drills into difficult-to-cut materials such as porcelain tile.
  • Excellent durability. Automatic water supply to the cutting edge (with a built-in water tank)
    *Enabled when the revolution per minutes (RPM) of the electric drill is 1000 to 3000 rpm.
      No water is supplied when the RPM is other than above range.
  • Usable with impact drivers, which allow cordless and easy operation.
  • Individually replaceable cutter delivers cost saving.

APPLICATIONS

  • Porcelain tile and Ceramic tile.
  • Granite and Marble.

SPECIFICATIONS

Cutter diameter : o4.0-10.5mm
Max.drilling depth: 35mm
Shank size: 1/4" hexagonal shank (6.35mm)
(DIN3126,ISO1173 style E6.3)
Optimum rotation: 1000-3000 r.p.m
(double insulated,in the rotary-only mode)

Precautions for use

  • Optimum rotation : 1000-3000 r.p.m
  • Water does not feed unless the rotation is optimum.
