The actual sizes are in metric, and imperial sizes are approximate.
The bit size (diameter) is based on MIYANAGA standard. |
| Bit size D | Cutter | Body Max.drilling depth 50mm (2") |
Body Max.drilling depth 100mm (4") |
||
| mm | inch | Part No. | Part No. | Part No. | |
| 4.0mm | 5/32" | DM040C | DM04050B | ||
 |
5.0mm | 3/16" | DM050C | DM05050B | DM050B |
 |
6.0mm | 15/64" | DM060C | DM06050B | DM060B |
|
6.5mm | 1/4" | DM065C | ||
| 8.0mm | 5/16" | DM080C | |||
 |
8.5mm | 21/64" | DM085C | DM08550B | DM085B |
| 9.0mm | 23/64" | DM090C | |||
| 10.0mm | 3/8" | DM100C | |||
|
10.5mm | 13/32" | DM105C | DM10550B | DM105B |
| 12.0mm | 15/32" | DM120C | |||
|
12.5mm | 1/2" | DM125C | DM12550B | DM125B |
|
14.5mm | 9/16" | DM145C | DM14550B | DM145B |
|

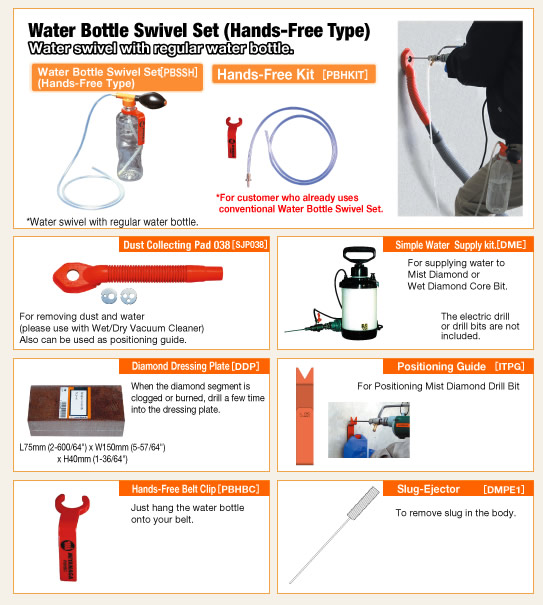

16.0mm | 5/8" | DM160C | n/a | DM160B |
| 18.0mm | 45/64" | DM180C | DM180B | ||
| Bit size D | Cutter | Body | Max. drilling depth | |
| mm | inch | Part No. | Part No. | |
| 19.0mm | 3/4" | DM190C | DM190B | 130mm (5-1/8") |
| 20.0mm | 25/32" | DM200C | DM200B | |
| 22.0mm | 7/8" | DM220C | DM220B | 200mm (7-7/8") |
| 23.0mm | 29/32" | DM230C | DM230B | |
| 24.0mm | 15/16" | DM240C | DM240B | |
| Item | Part No. | Applications |
| NO.1 | DMSK1P | For 4.0 - 12.5mm (5/32" - 1/2") Shank size 6.5mm (1/4") |
| NO.2 | DMSK2P | For 14.0 - 24.0mm (9/16" - 15/16") Shank size 10mm(3/8") |
 |
 |
|
