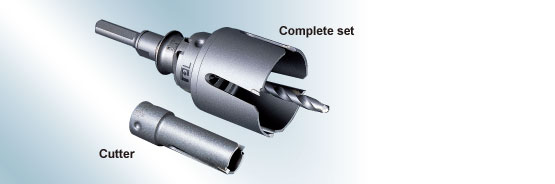

Realizes highly efficient drilling in new work materials that are difficult to machine.

CHARACTERISTICS

  • The geometry of the cutting teeth has been designed for obtaining sharpness, which allows fine cutting of reinforced material such as glass fibers of Fiber Reinforced Plastics, new kinds of building materials and provides a fine drilled surface. The surfaces of through holes are also fine with fewer burrs.
  • The deeper chip pocket enhances heat dissipation effect and provides smooth removal of dust, which allows drilling in thick plates.

APPLICATIONS

  • Large diameter into FRP, acrylic materials, Polyvinyl Chloride materials, plywood or various new kinds of building materials.

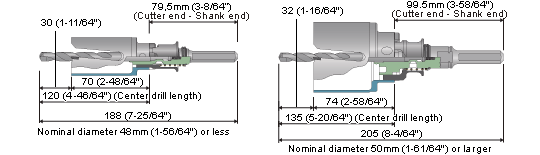

SPECIFICATIONS

Cutter size: o17mm to 127mm (o21/32" to 5")
Max. drilling depth: 45mm (1-3/4")
Shank size: Click here for the size table of the Poly-Clic shanks.
Applicable electric drill: Portable electric drills (in the rotary-only mode)
