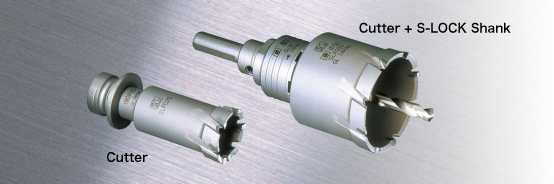

Specially designed cutting teeth realize efficient removal of dust.
- The carbide-tipped teeth permit drilling in work materials such as stainless steel.
- Specially designed cutting teeth realize efficient removal of dust.
- Easy to operate with the automatic locking and manual release mechanism.
(S-LOCK system)
- Steel, cast iron, stainless steel plates of up to 12mm (15/32") thickness.
- Plastic and composite material of up to 35mm (1-3/8") thickness.
 |

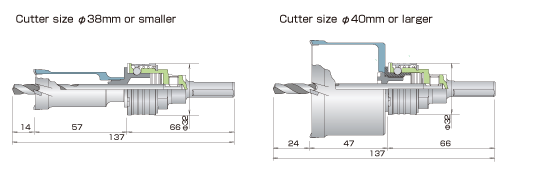

Cutter size: |
o14mm to 65mm (o35/64" to 2-9/16") |
|
Max. drilling depth: |
35mm (1-3/8")
(This holesaws can make a hole in steel plates of up to 12mm (15/32") thickness.) |
|
Shank size: |
Straight shank 10mm (3/8"), SDS shank,
Hex shank for cordless drill 6.35mm (1/4")
(For cutter size of 35mm (1-3/8") or less) |
|
Applicable electric drill: |
Portable electric drills (in the rotary-only mode) |
|
The actual sizes are in metric, and imperial sizes are approximate.
|
| Cutter size D |
Cutters |
| mm |
inch |
Part No. |
| 14mm |
35/64" |
SLF014 |
| 15mm |
19/32" |
SLF015 |
| 16mm |
5/8" |
SLF016 |
| 18mm |
45/64" |
SLF018 |
| 19mm |
3/4" |
SLF019 |
| 20mm |
25/32" |
SLF020 |
| 21mm |
13/16" |
SLF021 |
| 22mm |
7/8" |
SLF022 |
| 23mm |
29/32" |
SLF023 |
| 24mm |
15/16" |
SLF024 |
| 25mm |
1" |
SLF025 |
| 26mm |
1-1/64" |
SLF026 |
| 27mm |
1-1/16" |
SLF027 |
| 28mm |
1-3/32" |
SLF028 |
| 29mm |
1-1/8" |
SLF029 |
| 30mm |
1-3/16" |
SLF030 |
| 32mm |
1-1/4" |
SLF032 |
| 33mm |
1-9/32" |
SLF033 |
| 34mm |
1-5/16" |
SLF034 |
| 35mm |
1-3/8" |
SLF035 |
| 38mm |
1-1/2" |
SLF038 |
| 40mm |
1-9/16" |
SLF040 |
| 42mm |
1-5/8" |
SLF042 |
| 45mm |
1-3/4" |
SLF045 |
| 50mm |
2" |
SLF050 |
| 53mm |
2-1/16" |
SLF053 |
| 60mm |
2-3/8" |
SLF060 |
| 65mm |
2-9/16" |
SLF065 |
|
| * |
Click here for information about the shanks and center drills. |
|
